CR2032 Battery: Your Essential Guide

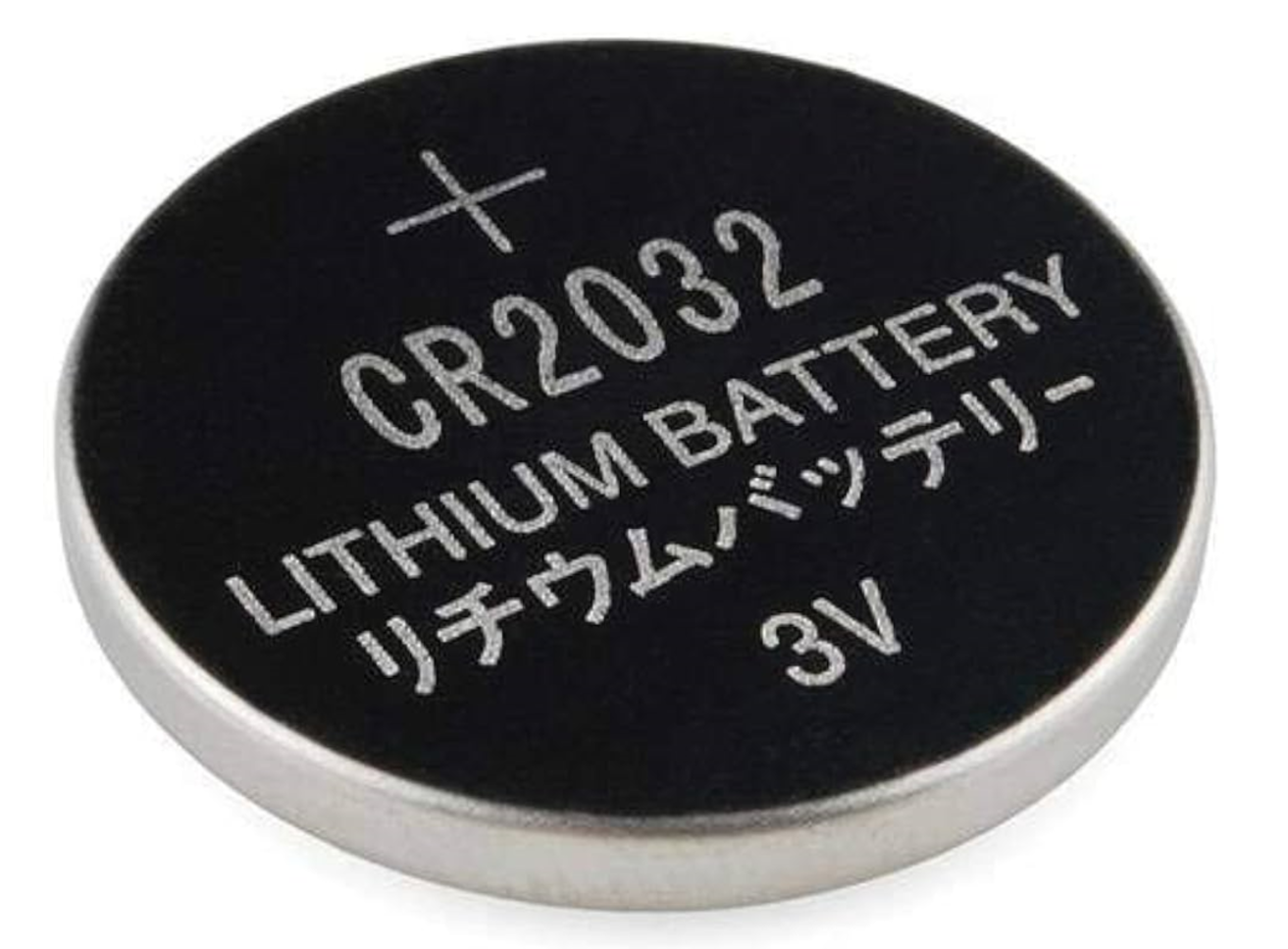

CR2032 Battery

Has there been a day when you have not used a gadget that could only be powered by a CR2032 battery? Well, I doubt it.

This compact battery is applied to guarantee your car key fob or even wristwatch is in the right condition.

In this guide, you will learn that is there to know about the CR2032. These will be like its basic characteristics, applications and precautions when handling the battery.

What Are CR2032 Batteries?

CR2032 batteries are small and round batteries often referred to as button or coin cells. They are a type of lithium battery and their name gives us a lot of useful information.

So what does CR2032 mean?

The “CR” stands for lithium manganese dioxide which is a material inside the battery that helps it work efficiently. The numbers “2032” tell us about its size. The battery is 20 millimeters in diameter and 3.2 millimeters thick. This standard naming system helps you easily find the right battery for your device.

CR2032 Battery Functionality

Despite that it is compact, CR2032 has integrated complex technology to power these gadgets effectively. We will begin with the most constituent parts and look at how this all pans out.

CR2032 Battery Specifications

The CR2032 battery consists of three primary components:

Components of CR2032 Battery (Image source)

Positive Electrode (Cathode):

The CB2032 battery’s positive electrode is the part made from lithium manganese dioxide (LiMnO2) or similar materials we saw earlier. This part is essential because it releases lithium ions when the battery is in use.

When the battery discharges, lithium ions move from the positive electrode to the negative electrode generating power.

Negative Electrode (Anode):

On the other side of the battery, the anode is typically composed of carbon often in the form of graphite. This material has two main jobs:

• Storing electrons

• Helping move lithium ions

As the lithium ions travel through the electrolyte from the positive electrode, they are absorbed by the carbon in the negative electrode.

At the same time, the negative electrode releases electrons into the external circuit which powers the device.

Electrolyte:

Connecting these two electrodes is the electrolyte, a lithium salt dissolved in an organic solvent. This electrolyte provides a medium through which lithium ions are in a position to shuttle back and forth between the positive electrodes.

It ensures the ions are free to move through the battery without having to overcome some resistance which is very vital for efficient flow.

The electrolyte’s main function is to facilitate the electrochemical reactions that occur within the battery ultimately enabling it to convert chemical energy into electrical power.

Here’s a broken process of electrochemical reactions in a CR2032 battery:

Chemical Reaction

When you connect the CR2032 battery to an electronic device, a chemical reaction occurs between the positive and negative electrodes. The reaction can be represented as:

LiMnO2​ + C6​ → LiC6​ + MnO2​

In this reaction:

• LiMnO2 in the positive electrode reacts with C6 in the negative electrode.

• The reaction produces LiC6 (lithium intercalated graphite) and MnO2​ (manganese dioxide)

Here’s a closer look at the reaction:

• LiMnO2: This compound releases lithium ions (Li+) when it is discharged. The lithium ions migrate away from the positive electrode.

• C6: Graphite in the negative electrode receives these lithium ions.

This reaction is important because it involves the transfer of lithium ions which is the fundamental process that powers the battery.

Movement of Ions and Electrons

The CR2032 battery relies on the movement of both ions and electrons to generate electric power.

Here’s how it works:

• Lithium Ions: Lithium ions (Li+) move from the positive side to the negative side of the battery through a liquid called the electrolyte. This keeps the battery working efficiently.

• Electrons: When lithium ions leave the positive side, electrons are released. These electrons move through a wire to the negative side, powering the device connected to the battery.

The movement of these ions can be described by the diffusion equation:

I = − D (∂C/ ∂x)

Where:

• I is the ion current.

• D is the equation coefficient of the ion in the electrolyte.

• C is the concentration of ions.

• X is the distance the ions travel.

This equation describes how ions spread from areas of high concentration (near the positive electrode) to low concentration (near the negative electrode).

The efficiency of this process is important for the battery’s performance as it attracts how effectively ions move through the electrolyte.

CR2032 Battery Features and Advantages

Here are the unique features and advantages.

Compact and Lightweight Design

The compactness and light weight of the CR2032 battery are among its biggest advantages. It comes with a diameter of 20mm and a thickness of only 3.2 mm.

These characteristics such as its small size and low weight make it possible to use it in portable electronic devices.

Long Lifespan and Stable Voltage Output

CR2032 batteries are well known for their long cycle life and ability to maintain a constant voltage. They usually supply a voltage of approximately 3 volts, which remains stable for most of the operational cycle of the battery.

This stability prevents frequent battery replacements since the devices are able to work for long durations.

Ideally, the CR2032 batteries can sustain a charge for up to 10 years and that is why they are suitable for backup power sources and long term use.

Good High and Low Temperature Performance

There is also an added value in the case of using CR2032 batteries as they are able to work effectively in different temperatures. They work fine in both high and low temperatures ranging from as low as - 20°C to a maximum of 60°C.

This feature makes them suitable for use in different environments such as very cold climates to hot environments.

Mercury-Free and Environmentally Friendly

Mercury is poisonous to both the environment and health and since CR2032 batteries do not use it, they minimize on the harm it causes.

This transition to mercury free batteries is commendable because it supports worldwide trends in the reduction of hazardous waste.

CR2032 Battery Applications

CR2032 batteries are commonly used in:

Small Electronic Devices

One of the most common uses of CR2032 is in small electronic devices like watches, remote controls and key fobs. They are perfect for such gadgets because they provide a stable and long lasting power supply.

Whether it is keeping your watch ticking accurately or ensuring your car key fob works every time, CR2032 batteries are up to to the task.

Medical Equipment and Wearable Devices

CR2032 batteries are also widely used in medical equipment and wearable devices. For example, they power glucose meters which are important for individuals managing diabetes.

The use in medical equipment is due to their reliability and long lifespan.

Household Electronics

In household electronics, CR2032 batteries are used in calculators, digital scales and small kitchen gadgets. They provide stable voltage output which means that such devices in the circuit perform their functions well without often demanding battery replacement.

From counting out expenses to balancing out ingredients these handy devices rely on CR2032 to run well and effectively.

Now when it comes to choosing a CB2032 battery or considering its alternatives, it is important to understand the different options available and how they compare. Let’s see them below.

CR2032 Battery Equivalents and Alternatives

There are several models and brands of CR2032 batteries each offering varying levels of quality and performance. Here is a table comparing some popular CR2032 battery brands:

Each brand offers slightly different features such as capacity and shelf life which can influence your choice depending on the application and how long you need it to last.

Compatibility with Similar Coin Cell Battery Types

CR2032 batteries have close equivalents like the CR2025 and CR1632 which may sometimes be used as substitutes.

Here’s a quick comparison:

• CR2032: 3.2 mm thick, 225-240 mAh capacity

• CR2025: 2.5 mm thick, 150-170 mAh capacity

• CR1632: 3.2 mm thick, 120 -130 mAh capacity

While these batteries have similar voltages, their capacities and thickness differ which affects how they fit and perform in device.

Ensure the battery fits your device’s compartment and meets its power requirements before choosing an alternative.

FAQs

Here are the most commonly asked questions about CR2032 batteries:

Can CR2032 batteries be recharged?

No. They are not designed to be recharged. Attempting to do so will lead to leakage or even explosion.

What are the risks of leakage or explosion?

The risks of leakage or explosion are minimal if CR2032 are used correctly but improper handling or exposure to extreme temperatures can increase the risk.

How can I extend the battery life of my devices?

To extend the battery life, turn off devices when not in use and use energy saving settings.

Conclusion

The CR2032 battery is a long lasting battery for small power consumers and it is useful in many different gadgets. Small in size and stable working parameters have made it the most used battery type in watches, remote and even medical devices.

With the knowledge of the features and applications of the various devices, you can ensure that your devices are powered efficiently and sustainably.
